Aerial systems / Spatial interfaces

A clearer view in demanding environments.

An integrated portfolio of aerial observation platforms and near-eye displays for surveying, inspection, situational awareness, maintenance and field support.

Explore the portfolio ↗Talk to our team →

Configurations below carry forward the source product catalogue. Confirm the current revision, availability, supported features and qualification evidence with our team for your application; catalogue parameters are not a substitute for acceptance-test results.

Defence & aerial intelligence

Aerial platforms

The Endura, Sailor and FPV families cover different observation, survey and inspection needs. Compare the source catalogue configurations below; endurance and range depend on the payload, battery and conditions.

Product platform

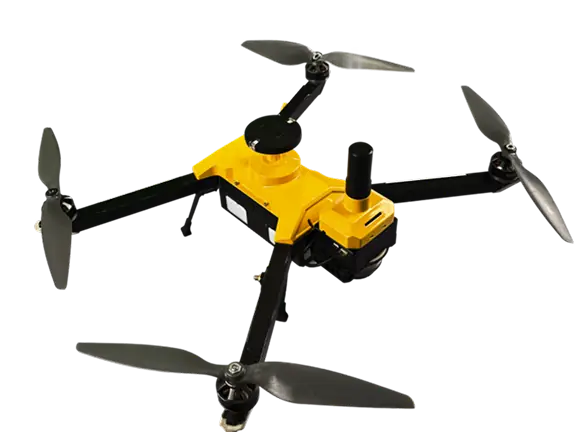

Arzen Endura 25

Endura 25 is designed for tactical ISR missions, providing real-time crew augmentation to operate beyond visual limitations.

Complex ISR operations in GPS-denied environments
Encrypted communications
Real-time AI integration for situational awareness

Catalogue configuration

Tactical drone for ISR missions with a carbon fibre composite body.

Dimensions: 750x690x250

AUW 2.4 kg

Flight Time 25 min

Flight Distance 13 km

Max Speed 54 km/h

Battery 4S - 12000 mAh

Max Takeoff Alt 3000 m ASL

Propeller 12x4.5" APC

Material Carbon Fibre Composite

Telemetry 4 km VLOS

Ceiling 3500 m ASL

Discuss Endura 25 ↗

Product platform

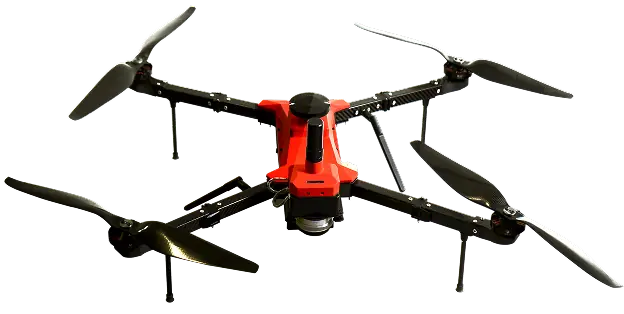

Arzen Endura 50

Endura 50 features an upgraded airframe and advanced onboard intelligence, built for autonomous flight and multi-payload operations.

AI-based object recognition
High-efficiency for extended-range operations
2kg payload capacity and AI support

Catalogue configuration

Advanced intelligence drone with extended range and payload capacity.

Dimensions: 950x1040x250

AUW 3.8 kg

Flight Time 55 min

Flight Distance 22 km

Max Speed 55 km/h

Battery 4S - 34200 mAh

Max Takeoff Alt 4500 m ASL

Propeller 18x5.5" Carbon

Material Carbon Fibre Composite

Telemetry 5 km VLOS

Ceiling 5000 m ASL

Discuss Endura 50 ↗

Product platform

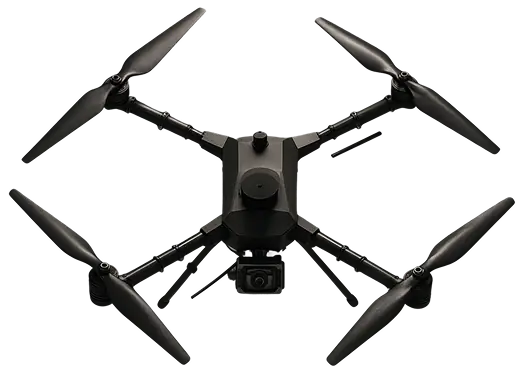

Arzen Endura 70

The Endura 70 provides long endurance, high-altitude surveillance for long-range tactical and environmental missions.

Extended-endurance design
High-efficiency and stable flight
Extended range with low-latency datalinks
High-altitude operational capability

Catalogue configuration

Long-endurance drone for high-altitude surveillance missions.

Dimensions: 1100x1220x300

AUW 3.9 kg

Flight Time 70 min

Flight Distance 20 km

Max Speed 45 km/h

Battery 6S - 22800 mAh

Max Takeoff Alt 5000 m ASL

Propeller 22x5.5" Carbon

Material Carbon Fibre Composite

Telemetry 5 km VLOS

Ceiling 5500 m ASL

Discuss Endura 70 ↗

Product platform

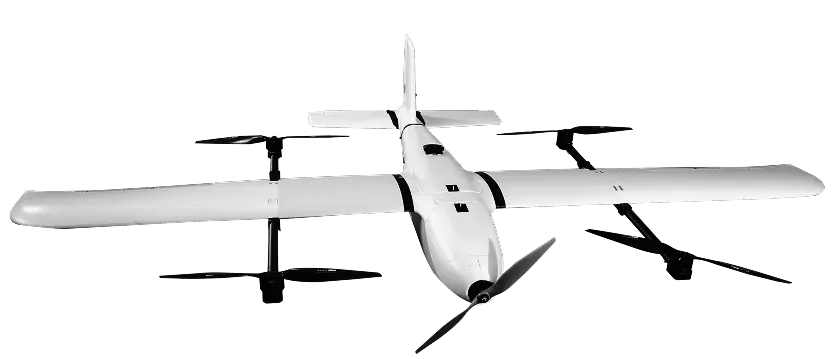

Arzen Sailor Series

Sailor Series is a relative mid-range scout designed to provide tactical intelligence and persistent eyes on mission-critical areas.

Resilient flight and payloaded for versatile missions
Modular payload capabilities

Catalogue configuration

Mid-range scout drone with a resilient reinforced EPP body.

Dimensions: 2100x1200x156

AUW 6.8 kg

Flight Time 80 min

Flight Distance 80 km

Max Speed 75 km/h

Battery 6S - 22000 mAh

Max Takeoff Alt 4000 m ASL

Propeller 18x6.8" VTOL 16x12" Cruise

Material Reinforced EPP

Telemetry 5+ km VLOS

Ceiling 4500 m ASL

Discuss Sailor Series ↗

Product platform

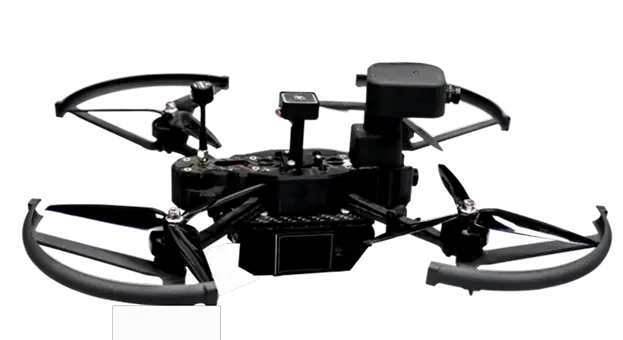

Arzen FPV Drone

High-speed custom FPV drone built for precision survey and surveillance.

Close quarters ISR
AR Headset Integration

Catalogue configuration

High-speed FPV drone for precision survey and close-quarters ISR.

Dimensions: 405x375x135

AUW 1.25 kg

Flight Time 35 min

Flight Distance 18 km

Max Speed 65 km/h

Battery 3S - 12000 mAh

Max Takeoff Alt 2000 m ASL

Propeller 7x4" 3-blade PC

Material Carbon Fibre Composite

Telemetry 3 km VLOS + Video

Ceiling 2500 m ASL

Discuss FPV Drone ↗

Defence & aerial intelligence

Arzen Sight near-eye displays

Monocular and binocular display concepts bring remote assistance, digital twin overlays, schematics and observation feeds into the operator’s field of view.

Product platform

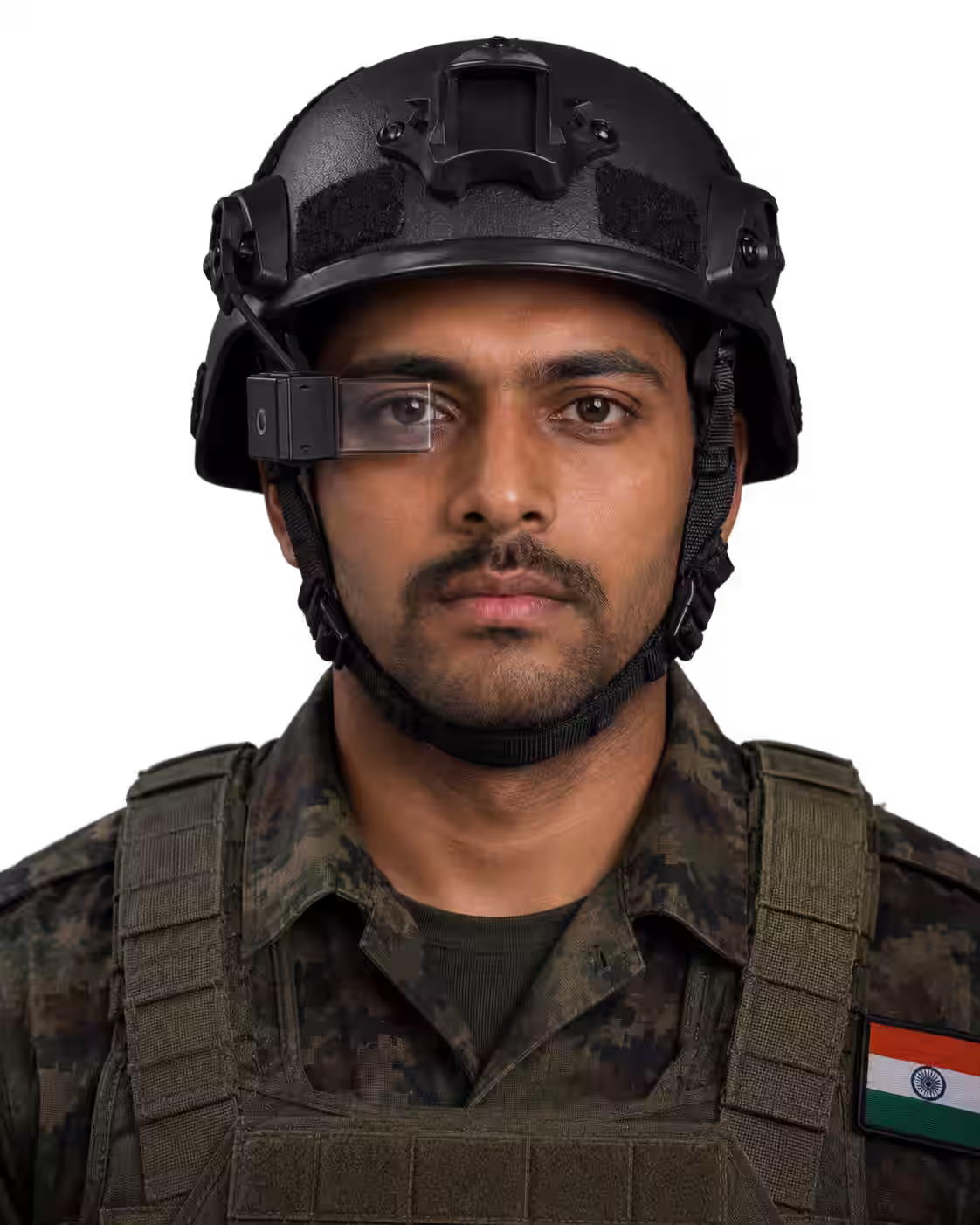

Arzen Sight R30

The Arzen Sight R30 Monocular display option. Headset brings a paradigm shift in maintenance, repair, and operations by blending real-time field support, digital twin overlays, and expert-guided procedures into a single hands-free wearable platform.

Discuss Sight R30 ↗

Product platform

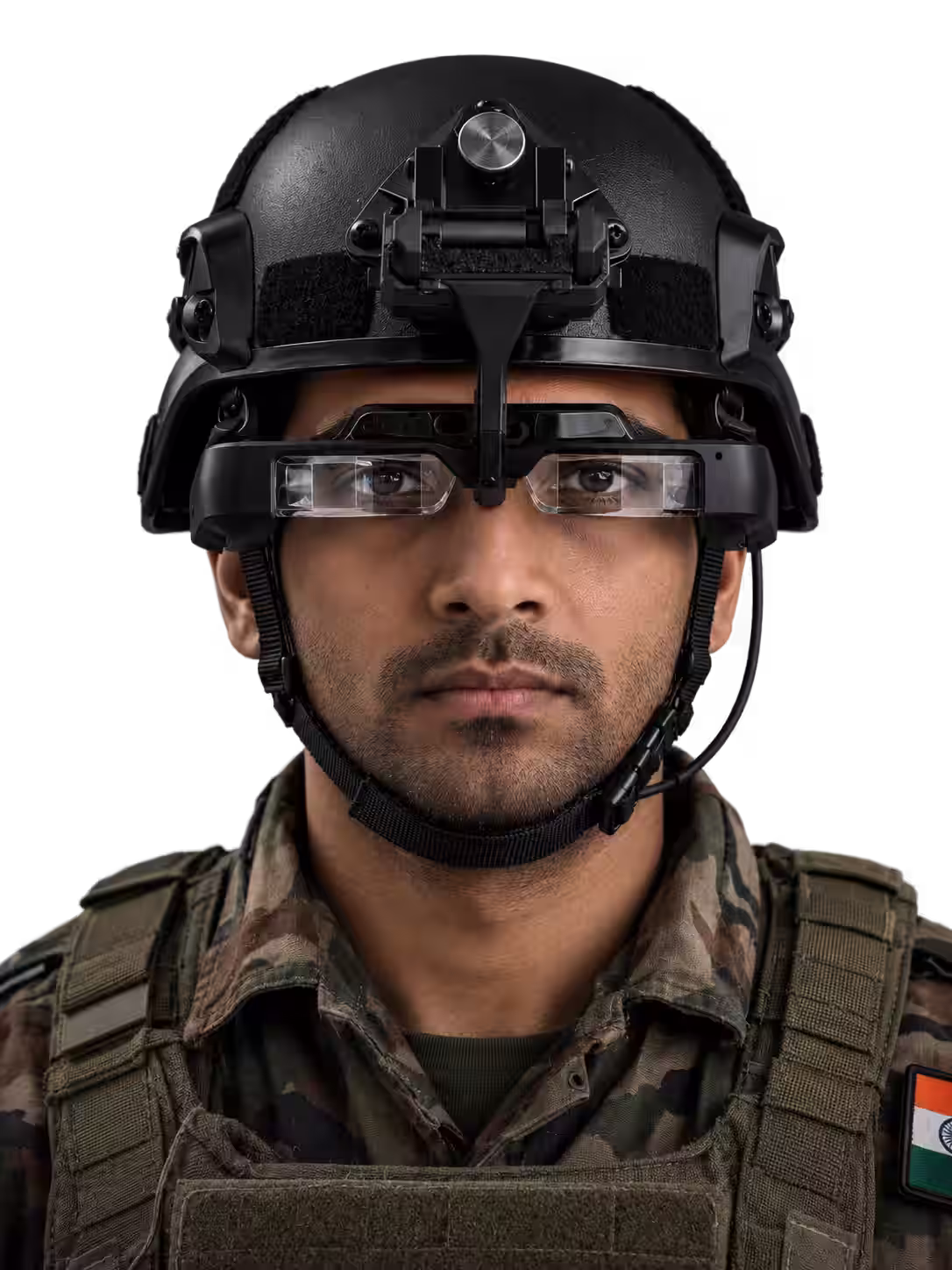

Arzen Sight R100

The Arzen Sight R100 creates an intelligent, immersive workspace around the operator. Its binocular display superimposes live expertise and interactive 3D schematics with precise depth and clarity, allowing complex procedures to be executed.

Discuss Sight R100 ↗

Product platform

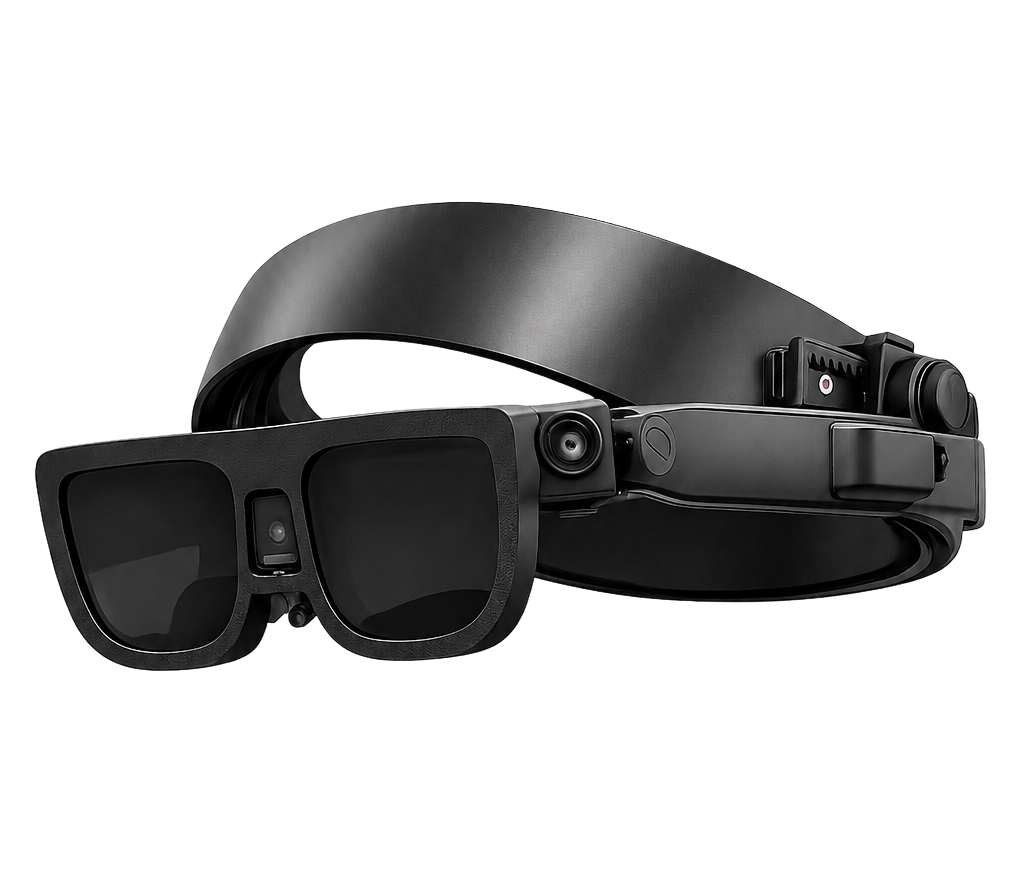

Arzen Sight R200

R200 is a tactical AR headset for real-time awareness and mission support. It displays live drone feeds and overlays in the operator’s view. The headset features head-tracking and voice control for drone commands. Designed for soldiers needing visibility without handheld screens, R200 integrates with the SkyEye Stack for a cohesive system.

Discuss Sight R200 ↗

Where it fits

Built around your application.

Survey & inspection

Aerial observation of infrastructure and terrain, with mission planning and payload selection.

Maintenance & field support

Hands-free procedures, remote expert support and digital information in context.

Situational awareness

Observation feeds and spatial interfaces with a programme-specific approach to communications and data security.

From platform to programme

Plan the integration.

Start a conversation ↗

01. Specify the observation task, environmental constraints and operating area.

02. Select the airframe, payload, power and display configuration.

03. Define data interfaces, operator workflows and communications requirements.

04. Plan flight permissions, system verification, operator training and field acceptance.

Before we begin.

Can the platform be customised?

Share your interfaces, enclosure constraints, firmware, connectivity, operating environment and expected volumes. Our team can assess the engineering scope and propose a configuration and validation plan.

How do I request specifications or an evaluation?

Use the product enquiry link with the product name and intended application. Ask for the current datasheet, revision, evaluation availability and the supporting test evidence relevant to your programme.

What does the engagement cover?

The scope can include hardware, firmware, system integration, manufacturing documentation, QA, provisioning and lifecycle support. Deliverables, qualification requirements and service commitments are established in the programme scope.
